SamtecTLW-113-05-G-DCabezales del conector y receptáculos PCB

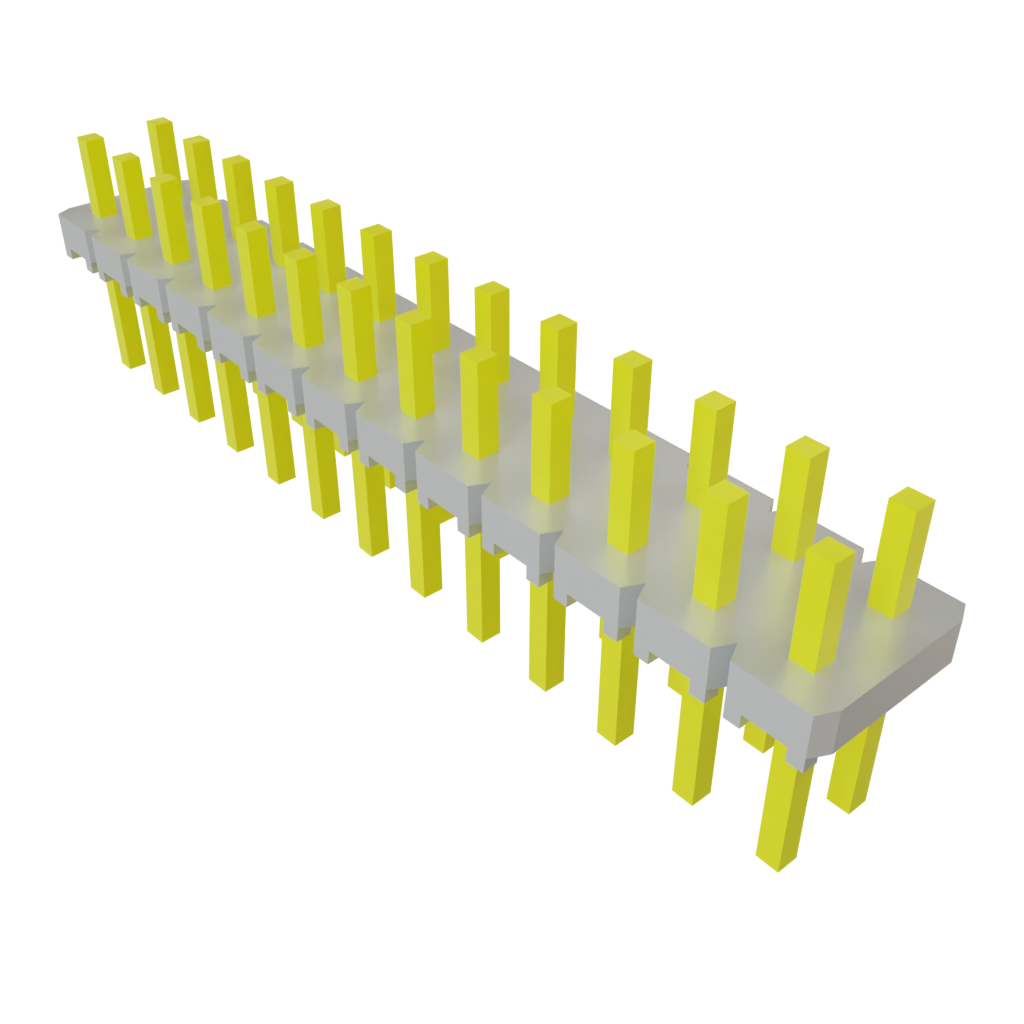

Mount this unshrouded TLW-113-05-G-D header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector's 26 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 5.2 A/contact. This connector has an operating temperature of -55 to 125 °C. TLW-113-05-G-D is housed in black liquid crystal polymer. It uses the solder termination method. This product is 33.02 mm long, 4.19 mm tall and 5.03 mm deep.
