SamtecHTSW-108-07-G-SCabezales del conector y receptáculos PCB

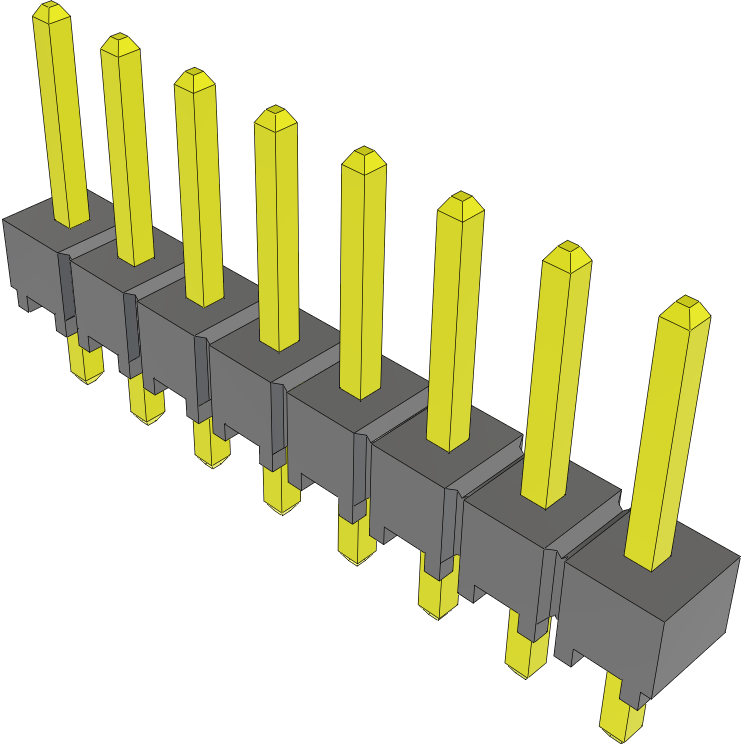

Use this unshrouded HTSW-108-07-G-S header connector from Samtec where IDC ribbon cables are used. This HDR connector's 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. HTSW-108-07-G-S is housed in natural liquid crystal polymer. It uses the solder termination method. This product is 20.32 mm long, 8.38 mm tall and 2.48 mm deep. This connector has an operating temperature of -55 to 125 °C.
