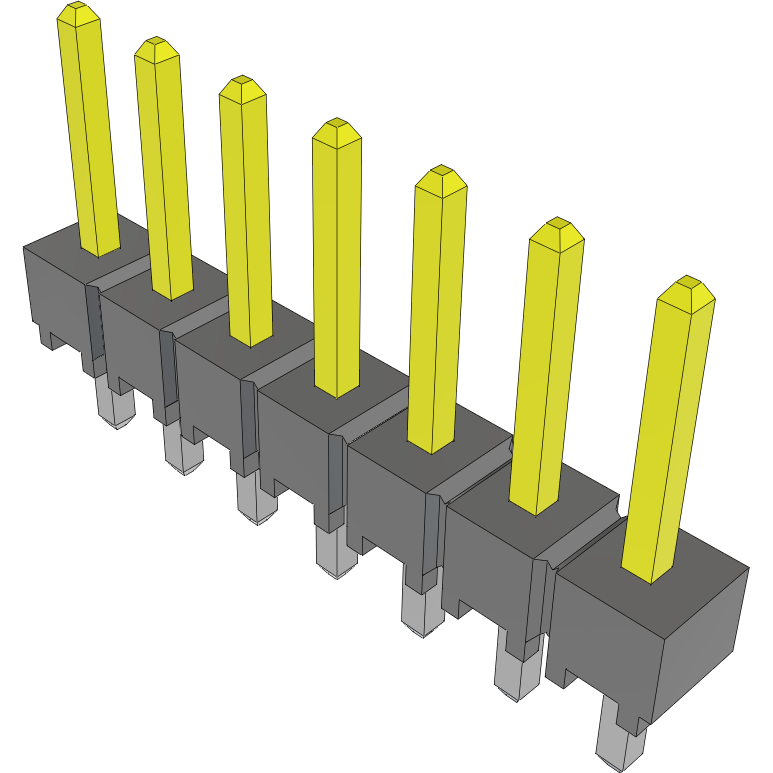

SamtecHTSW-107-07-L-SCabezales del conector y receptáculos PCB

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded HTSW-107-07-L-S header connector from Samtec. This HDR connector's 7 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 17.78 mm long, 8.38 mm tall and 2.48 mm deep. HTSW-107-07-L-S is housed in natural liquid crystal polymer.
