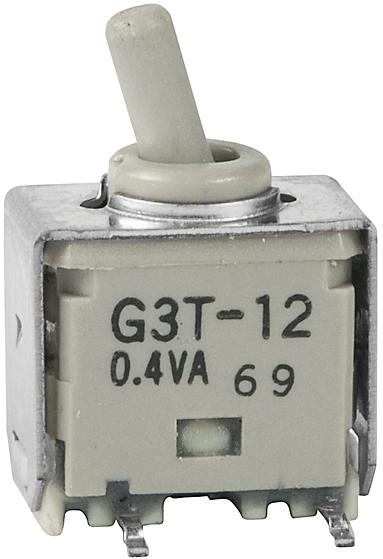

NKK SwitchesG3T12APInterruptor de palanca
Switch Toggle ON None ON SPDT Round Lever Gull Wing 0.1A 28VAC 28VDC 0.4VA PC Mount Tray
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| Process Sealed | |
| Round Lever | |
| SPDT | |
| ON None ON | |
| Unthreaded | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 500 | |
| 80 | |
| 50000 | |
| 50000 | |
| 3.8 | |
| 1 | |
| PC Mount | |
| Gull Wing | |
| 3 | |
| 1.3 | |
| 2.54 | |
| Total/Rubber/Rubber/Epoxy/Epoxy/Process/Ring(Nitrile Butadiene Rubber) | |
| N/A/Actuator/Base/Joint of (Case/Base)/Terminals/N/A/N/A | |
| Total/Rubber/Rubber/Epoxy/Epoxy/Process/Ring(Nitrile Butadiene Rubber) | |
| Polyphenylene Sulfide | |
| Resin | |
| Straight | |
| -30 | |
| 85 | |
| Tray | |
| Ultra-Miniature | |
| 8.5 | |
| 1.5 | |
| 5 | |
| 7.5 | |
| 0.6 | |
| 8.5 | |
| 7.6 | |
| 12.9 |
The process sealed G3T12AP toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The G3T12AP toggle switch has a gull wing termination style. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 8.5 mm long, 12.9 mm tall and 7.6 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
