DC059A-A, Demo Board based on LTC1174HV-5, 5V @ 380mA, High Efficiency Step-Down DC-DC Converter

Reference Design using part LTC1174HVCS8-5 by Analog Devices

Enlarge
DC059A Image

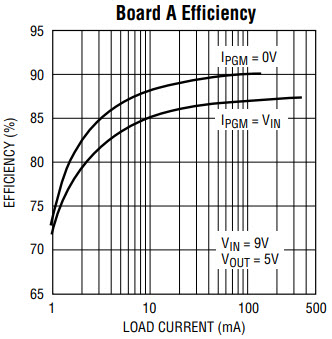

DC059A Efficiency
DC059A Schematic
Image 1 / 3

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Current Sensing
  • Switching Power Supply

Description

  • DC059A-A, Demonstration Circuit is a step-down (buck) regulator using the high voltage LTC1174-5. Exclusive use of surface mount components results in a highly efficient application in a small board space. This demo board highlights the simplicity of the LTC1174 in stepping down input voltages ranging between 4 to 16.5V. The LTC1174 is a current mode DC/DC converter, thus the peak inductor current is well-defined and provides excellent transient response. To optimize efficiency, the LTC1174 automatically switches between continuous and Burst Mode operation

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    4 to 16.5 V
  • Output Voltage
    5 V
  • Output Current
    0.38 A
  • Efficiency
    90 %
  • Topology
    Buck

Featured Parts (1)

Featured Parts
Part Number Manufacturer Type Description
LTC1174HVCS8-5 Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 4V to 18.5V Inv/Step Down Single-Out 5V 0.423A 8-Pin SOIC N Buy
