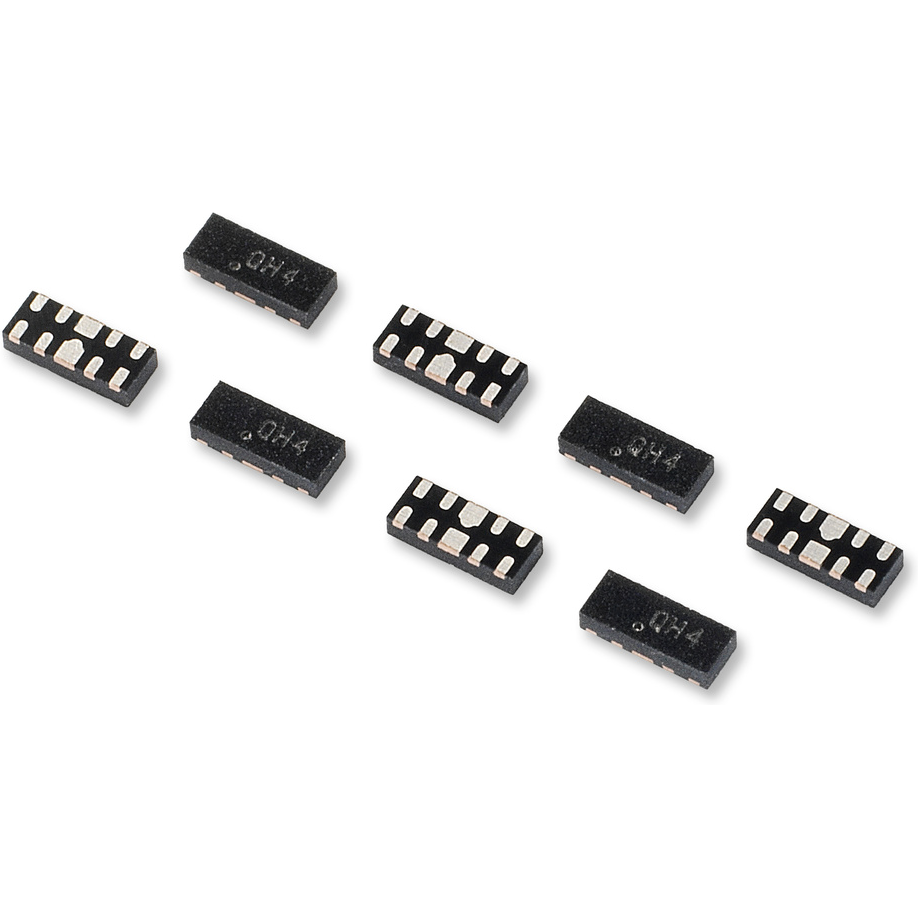

LittelfuseSP3010-04UTGESD 抑制器
ESD Suppressor Diode Array Uni-Dir 6V 10-Pin UDFN T/R Automotive AEC-Q101
| Compliant | |
| EAR99 | |
| Active | |
| 8541.10.00.80 | |
| Automotive | Yes |
| PPAP | Unknown |
| Diode Array | |
| Quad | |
| Uni-Directional | |
| 4 | |
| 6 | |
| 12.3(Typ) | |
| 3@8/20us | |
| 0.5 | |
| 0.45(Typ) | |
| -40 | |
| 125 | |
| Automotive | |
| Tape and Reel | |
| No | |
| Mounting | Surface Mount |
| Package Height | 0.5(Max) mm |
| Package Width | 1 mm |
| Package Length | 2.5 mm |
| PCB changed | 10 |
| Standard Package Name | DFN |
| Supplier Package | UDFN |
| 10 | |
| Lead Shape | No Lead |
If you're worried about electrostatic discharge to your electronic circuit, look no further, use this diode array SP3010-04UTG ESD protection device from Littelfuse for superior protection. This ESD diode has a maximum ESD protection device voltage of ±15(Min)@Air Gap/±8(Min)@Contact Disc kV. This device's maximum clamping voltage is 12.3(Typ) V. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a quad configuration. Its capacitance value is 0.45(Typ) pF.
