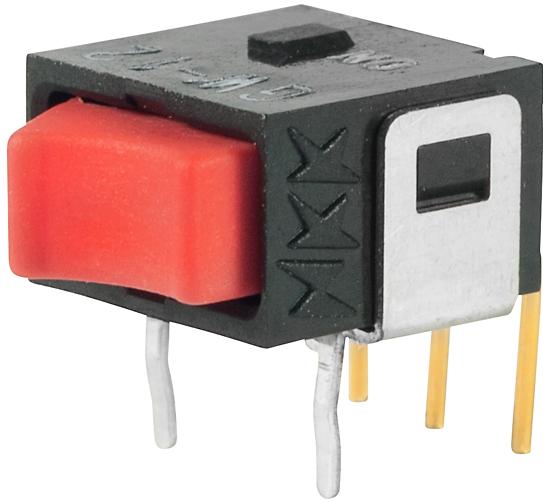

NKK SwitchesGW12RCHSwitch Rocker
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| SPDT | |
| ON None ON | |
| Curved Rocker | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 500 | |
| 80 | |
| 50000 | |
| 50000 | |
| Red | |
| 1 | |
| Bracket Mount/Through Hole | |
| PC Pins | |
| 3 | |
| 2.75 | |
| 2.54 | |
| Terminals/N/A | |
| Epoxy/Ring(Nitrile Butadiene Rubber) | |
| Glass Fiber/Polyamide | |
| Red | |
| Right Angle | |
| -30 | |
| 85 | |
| 7.5 | |
| 7.68 | |
| 5.4 | |
| 7.5 | |
| 10.18 | |
| 5.4 | |
| 2.3 | |
| 3 |
Do you need a safe way to turn off and on your device? Use this GW12RCH rocker switch from NKK Switches for a sleek look. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The GW12RCH rocker switch panel has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 7.5 mm long, 5.4 mm tall and 10.18 mm deep.
