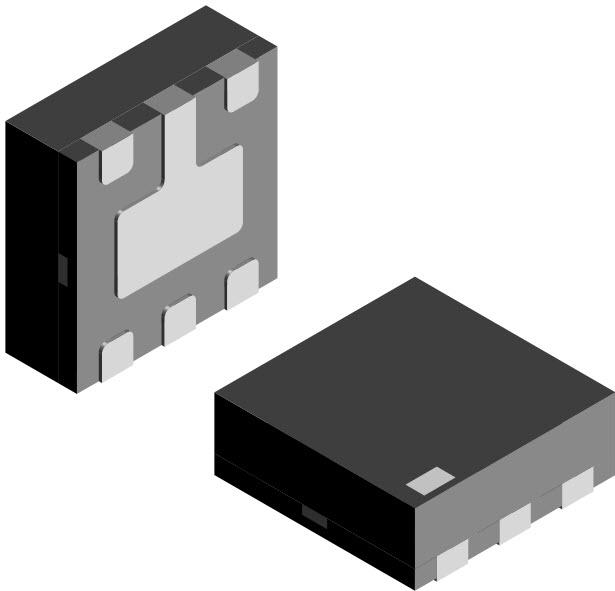

VishayGMF05LC-HSF-GS08ESD 抑制器

Vishay has introduced the eSMP® (enhanced Surface-Mount Power) series packages for high reliability automotive and industrial applications. The series consists of flat-type surface-mount packages with space-saving footprints that maintain the surge capabilities of traditional transient voltage suppressor (TVS) diode packages. Vishay provides 400 W SMF (DO-219AB), 400 W SMP (DO-220AA), 600 W SlimSMA (DO-221AC), and 1500 W SMPC (TO-277A) TVS for the same 10 / 1000 µs surge conditions as the traditional 400 W SMA, 600 W SMB, and 1500 W SMC TVS packages.

TVS in eSMP® series
Did You Know Infograph

Features

• •  AEC-Q100 qualified and Automotive Grade available
• •  Low profile MicroSMP package with very low profile height or 0.65 mm
• •  Unidirectional polarity only
• •  Peak pulse power: 150 W (10 us/1000us)
• •  ESD capability: 15 kV (air), 8 kV (contact)

Benefits

Vishay TVS in MicroSMP® package with space-saving footprints that maintain the surge capabilities of traditional transient voltage suppressor (TVS) diode packages. MSMP6.0A thru MSMP20A series, MSP3V3 and MSP5.0A devices provide high surge capability of 150 W at 10/1000 us for portable electronics.
