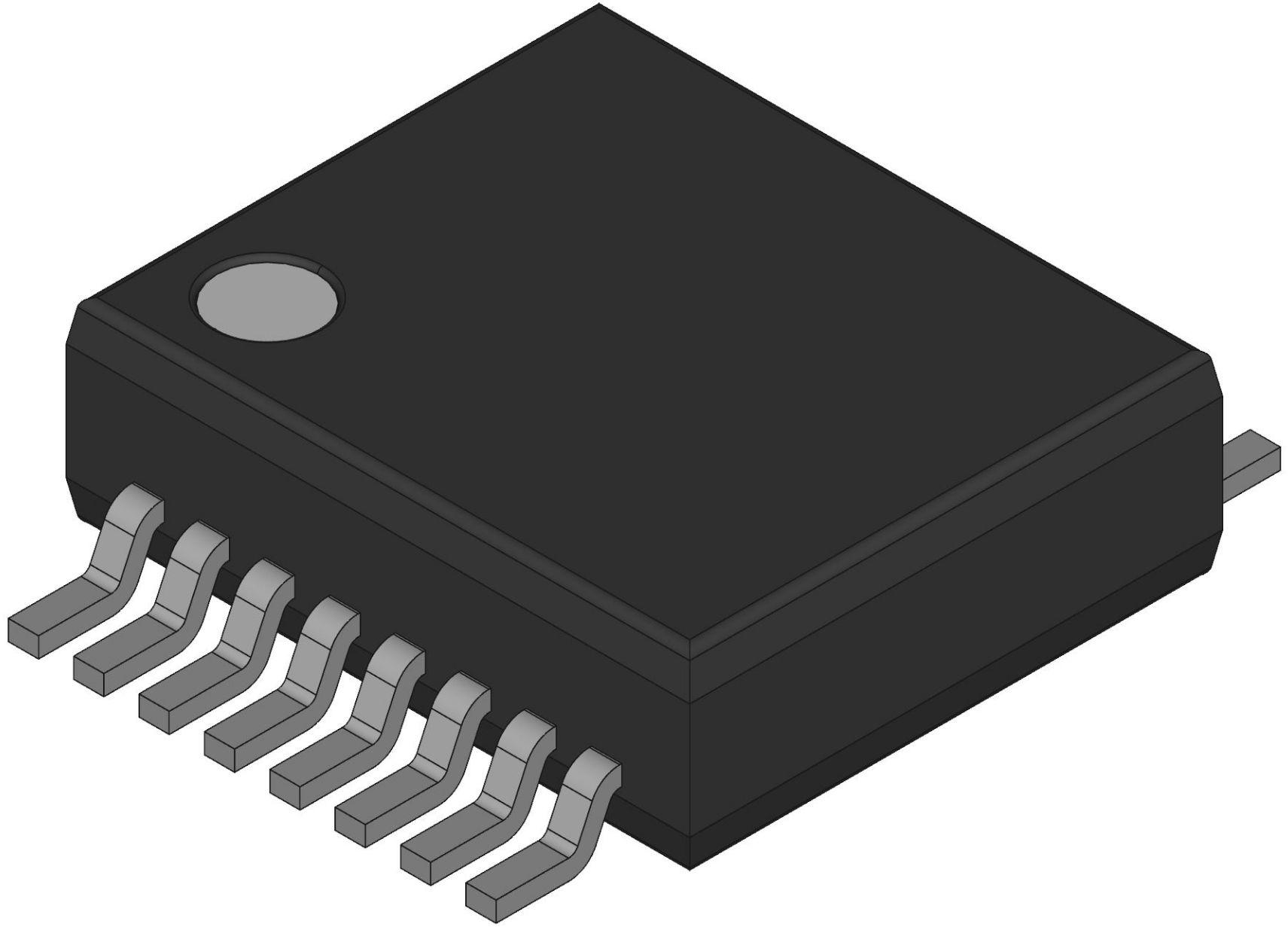

Diodes IncorporatedPAM8403DRAudio Amplifiers
Audio Amp Speaker 2-CH Stereo 3.2W Class-D 16-Pin SOP T/R
| Compliant | |
| EAR99 | |
| NRND | |
| 8542.33.00.01 | |
| Automotive | No |
| PPAP | No |
| Speaker | |
| Class-D | |
| 0.11%@8Ohm@0.1W|0.15%@8Ohm@1W | |
| Differential | |
| 2-Channel Stereo | |
| 2.5 | |
| 3|5 | |
| 5.5 | |
| 4 | |
| Single | |
| 3.2x2@4Ohm | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 1.52(Max) mm |
| Package Width | 4(Max) mm |
| Package Length | 10(Max) mm |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | SOP |
| 16 | |
| Lead Shape | Gull-wing |
Implement this PAM8403DR class D amplifier from Diodes Zetex for a stronger and more powerful output sound. It has a minimum load resistance of 4 Ohm and a maximum of 8 Ohm. It has a single input signal and a differential output signal. It has a 2-channel stereo output. This audio amplifier has a temperature range of -40 °C to 85 °C. This device uses a single power supply. Its typical PSRR is 59 dB.
| EDA / CAD Models |
