SamtecEHF-120-01-FM-D-SM-LCConnector Headers and PCB Receptacles

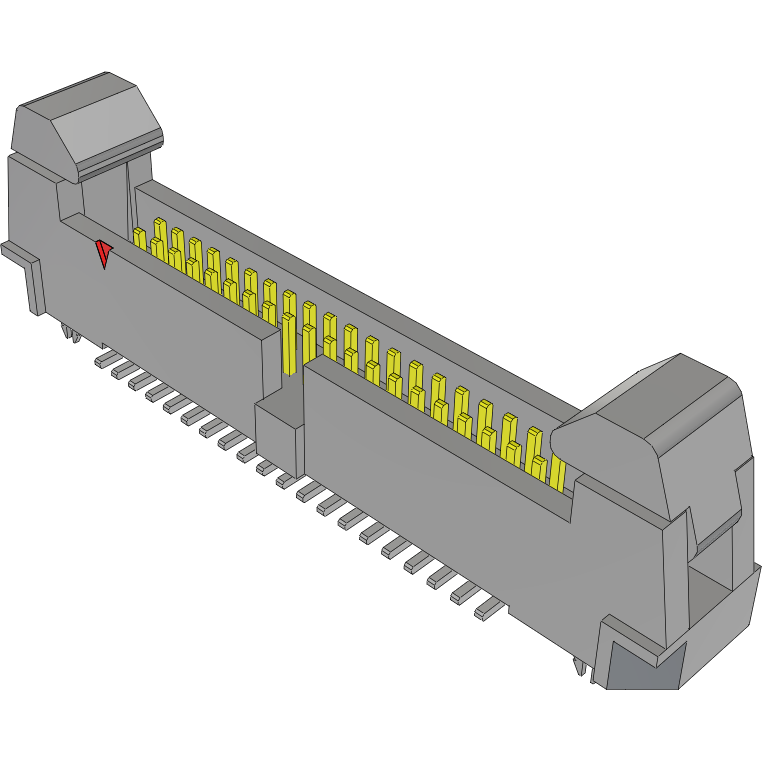

Reduce safety concerns with this ejector EHF-120-01-FM-D-SM-LC header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector's 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 1.27 mm. This device has a maximum current rating of 1.75 A. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. EHF-120-01-FM-D-SM-LC is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 39.88 mm long, 11.55 mm tall and 7.52 mm deep. It uses the solder termination method.
