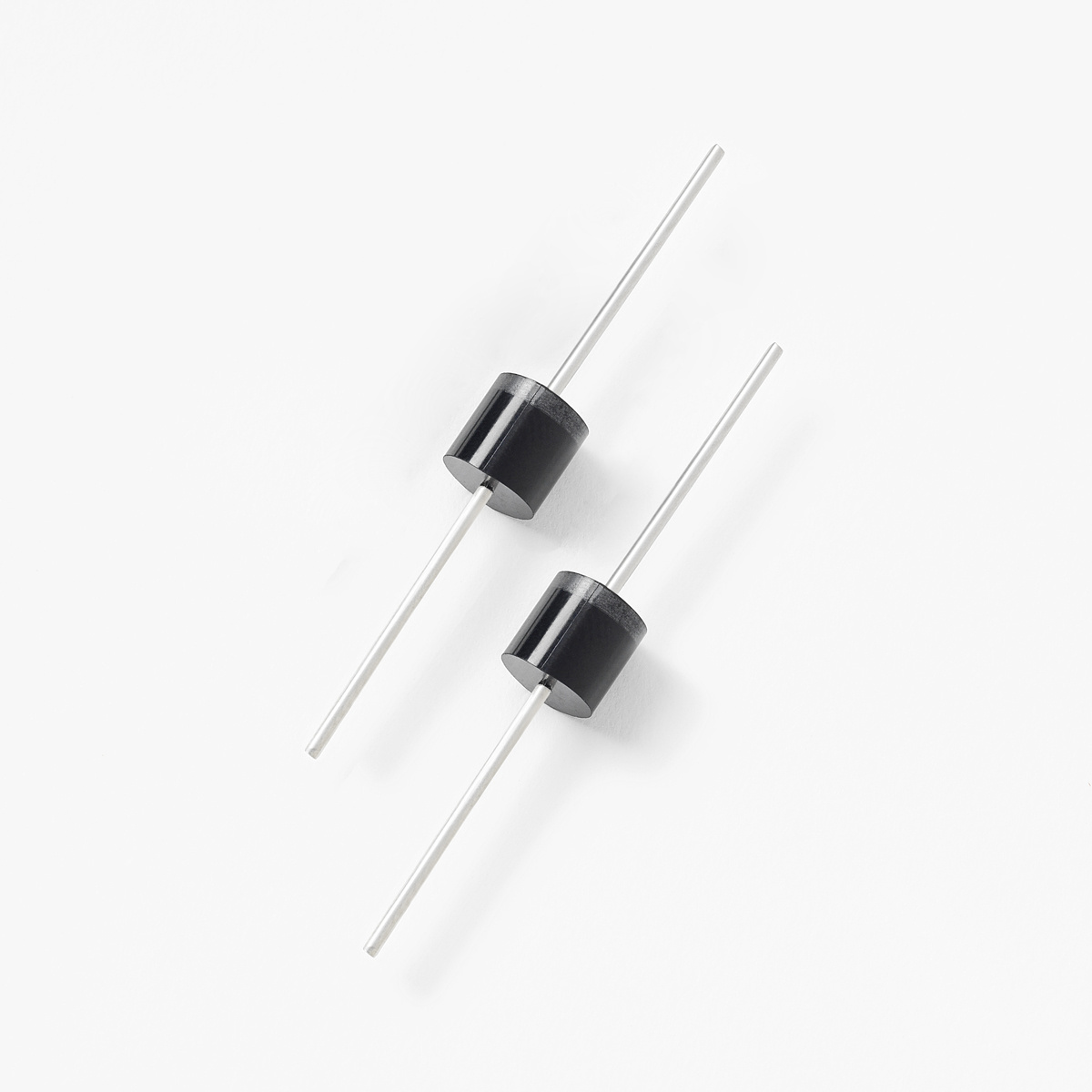

The DST2045AX by Littelfuse is an ultralow-VF Schottky barrier rectifier designed for commercial and industrial applications. It features a forward voltage drop of only .50-.58V and high-frequency operation. This rectifier also boasts an operating temperature range of -55 to +150 °C and a guard ring to ensure long-term reliability. The DST2045AX is perfect for switch-mode power supplies and DC/DC converters.
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8541.10.00.80 | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| Schottky Diode | |
| Single | |
| 45 | |
| 20 | |
| 250 | |
| 0.58 | |
| 1200 | |
| -55 | |
| 150 | |
| Tape and Reel | |
| Diameter | 9.1(Max) mm |
| Mounting | Through Hole |
| Package Length | 9.1(Max) mm |
| PCB changed | 2 |
| Supplier Package | Case P-600 |
| 2 | |
| Lead Shape | Through Hole |
| EDA / CAD Models |
