Interruptores Pulsadores

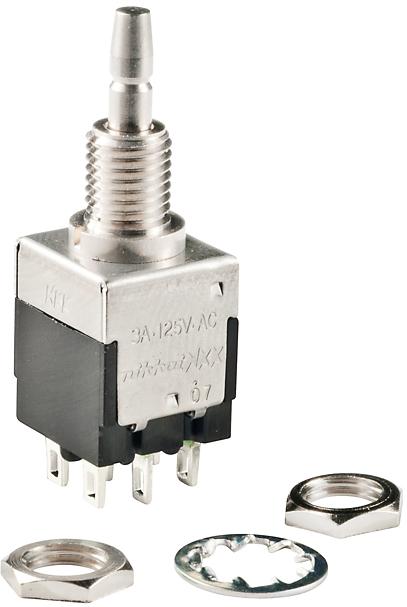

EB2061

Switch Push Button ON (ON) DPDT Square Button 3A 125VAC Momentary Panel Mount Solder Lug

NKK Switches

Especificaciones técnicas del producto

• RoHS (Unión Europea)

  Compliant with Exemption

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• SVHC

  Yes

• Índice de SEP por encima del límite autorizado

  Yes

• Automotive

  No

• PPAP

  No

• Switch Function

  Momentary

• Pole Throw Configuration

  DPDT

• Actuator Style

  Square Button

• Switch Configuration

  ON (ON)

• Maximum Current Rating (A)

  3@125VAC

• Dielectric Strength

  1000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  25000

• Mechanical Life (Cycles)

  100000

• Number of Rows

  2

• Row Spacing (mm)

  4.7

• Mounting

  Panel Mount

• Termination Style

  Solder Lug

• Number of Terminals

  6

• Terminal Pitch (mm)

  3.9

• Seal Location

  Terminals

• Seal Description

  Epoxy

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70
