Resistores, capacitores variables, potenciómetros y reostatos

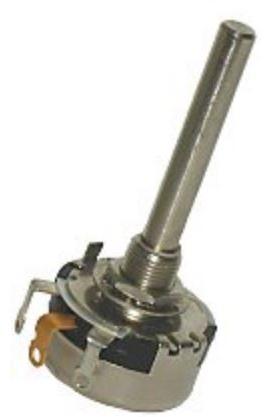

43C110K

Res Wirewound POT 10K Ohm 5% 2W 1(Elec)/1(Mech)Turns 6.35mm (65.88 X 28.58 X 38.89mm) Solder Lug Panel Mount

Honeywell

Especificaciones técnicas del producto

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Obsolete

• Código HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Potentiometer

• Resistance Value (Ohm)

  10K

• Tolerance

  5%

• Maximum Voltage Rating (V)

  310

• Power Rating (W)

  2

• Technology

  Wirewound

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  105

• Linear or Logarithmic

  Lin

• Termination Style

  Solder Lug

• Positions of Adjustment

  Side

• Shaft Diameter (mm)

  6.35

• Number of Turns (Turns)

  1(Elec)|1(Mech)

• Number of Elements

  1

• Number of Electrical Turns (Turns)

  1

• Mechanical Rotation (°)

  300

• Mechanical Rotational Life (Cycles)

  10000

• Number of Mechanical Turns (Turns)

  1

• Product Length (mm)

  65.88

• Product Depth (mm)

  28.58

• Product Height (mm)

  38.89

• Mounting

  Panel Mount
