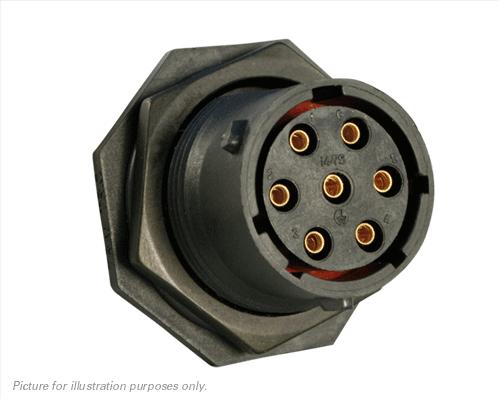

SOURIAUUTS7147SConnector Circular
Conn Circular SKT 7 POS Crimp ST Jam Nut 7 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| EA | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| MIL-DTL-26482 | |
| Circular | |
| RCP | |
| Jam Nut | |
| Straight | |
| N | |
| 1 | |
| 7 | |
| 7 | |
| SKT | |
| Crimp | |
| 14-7 | |
| 16-20 | |
| No | |
| Copper Alloy | |
| Gold Over Nickel | |
| Thermoplastic | |
| 13 | |
| 250VAC | |
| -40 | |
| 105 | |
| IP68/IP69K | |
| 5000 | |
| Bayonet Lock | |
| 100 | |
| 33.9 | |
| 34.9 | |
| 34.9 |
This input/output cpc UTS7147S connector from Souriau is perfect for making a solid connection between your cylindrical cable housing. Its shell size is 14-7. It has a receptacle type gender. This socket type connector has 7 socket type contacts. It has a straight body orientation. This device has a maximum current rating of 13 A. This product is 33.9 mm long, 34.9 mm tall and 34.9 mm deep. It uses the crimp termination method. This circular connector has an operating temperature of -40 to 105 °C.
