SamtecTSW-120-07-T-DConnector Headers and PCB Receptacles

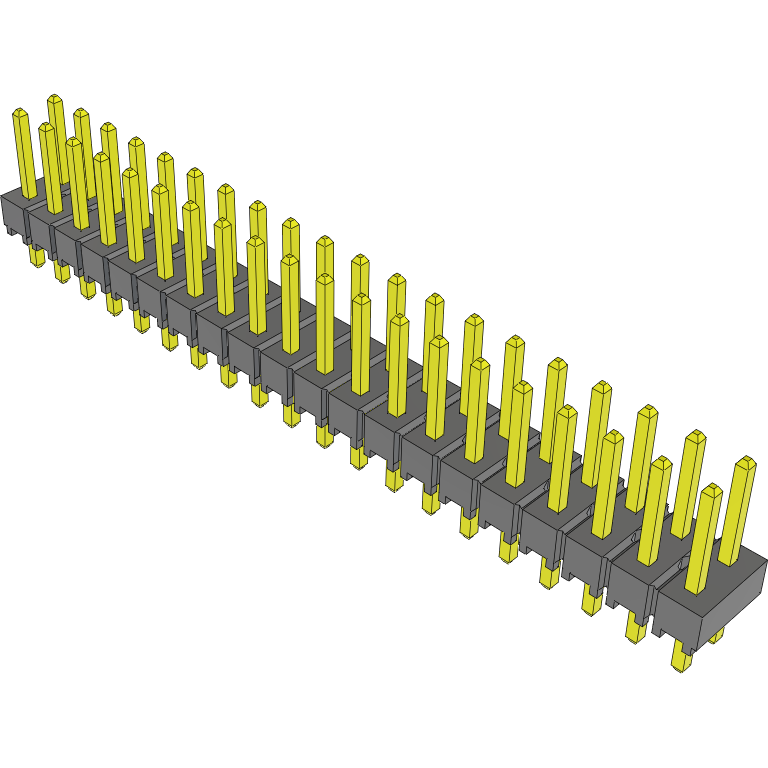

Look no further than the unshrouded TSW-120-07-T-D header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector's 40 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. TSW-120-07-T-D is housed in black polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 50.8 mm long, 8.38 mm tall and 5.08 mm deep.
