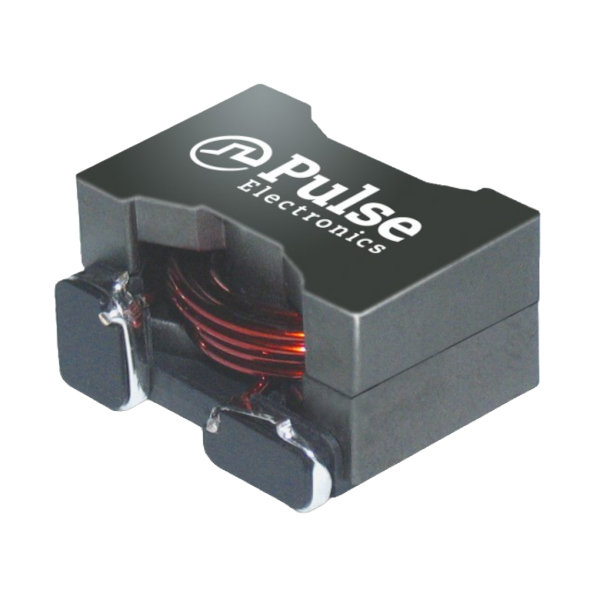

Pulse ElectronicsPA2050.782NLInductor Surface Mount
Inductor Power Wirewound 7.8uH 10% 13.3A 0.0051Ohm DCR
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Wirewound | |
| 7.8u | |
| 20 | |
| 10% | |
| 13.3 | |
| 18 | |
| 0.0051(Typ) | |
| 3 | |
| -55 | |
| 130 | |
| 22.23 | |
| Surface Mount | |
| 19.05 | |
| 12.2 |
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power PA2050.782NL surface mount inductor from Pulse is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 130 °C. It has an inductance of 7.8u H. This product is 22.23 mm long, 12.2 mm tall and 19.05 mm deep. This device utilizes wirewound technology. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 13.3 A with a maximum resistance of 5.1m Ohm.
