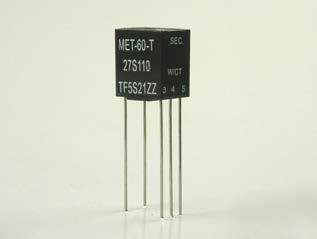

MET-60-T

Audio Transformer 1:1CT 1500Vrms 10.5Ohm Prim. DCR 10.8Ohm Sec. DCR 5 Terminal Pin Thru-Hole

Triad Magnetics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.85.00

• Automotive

  Unknown

• PPAP

  Unknown

• Transformer Type

  Audio Coupling Miniature Encapsulated Transformer

• Turns Ratio

  1:1CT

• Primary Side Impedance (Ohm)

  135

• Secondary Side Impedance (Ohm)

  135

• Maximum DCR Primary Side (Ohm)

  10.5

• Maximum DCR Secondary Side (Ohm)

  10.8

• High Potential

  1500Vrms

• Lead Style

  Pin

• Mounting

  Through Hole

• Number of Terminals

  5

• Frequency Response

  ±2dB

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  85

• Package Type

  DIP

• Packaging

  Carton

• Product Length (mm)

  10.4

• Product Depth (mm)

  7.87

• Product Height (mm)

  11.8
