TFT Modules

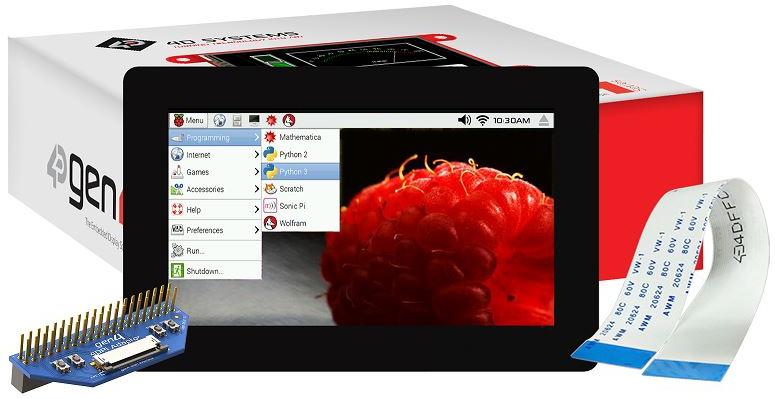

GEN4-4DPI-70CT-CLB

7.0", 480x800 pixel, gen4 Primary Display with Capacitive Touch for the Raspberry Pi

4D Systems

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8528.59.33.70

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Unknown

• PPAP

  Unknown

• Display Mode

  Transmissive

• Display Size (in)

  7

• Pixel Format (Pixels)

  800x480

• Resolution Standard

  WVGA

• Aspect Ratio

  5:3

• Typical Contrast Ratio

  500:1

• Typical Brightness (cd/m2)

  475

• Backlight

  LED

• Display Color (Colors)

  65,000

• Viewing Angle (°)

  140/130

• Touchscreen

  Yes

• Active Area (mm)

  153.84x85.6

• Outline Dimensions (mm)

  190.1x121.9x10

• Interface Type

  I2C/SPI

• Minimum Operating Supply Voltage (V)

  3|4.5

• Typical Operating Supply Voltage (V)

  3.3|5

• Maximum Operating Supply Voltage (V)

  4|5.5

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  60

• Packaging

  Foam

• Mounting

  Panel

• Package Height

  121.9

• Package Width

  9.7

• Package Length

  190.1
