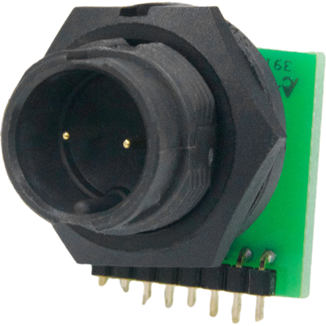

SwitchcraftEN3P2MRAPCBNConnector Circular
Conn Circular PIN 2 POS Solder RA Thru-Hole 2 Terminal 1 Port
| Not Compliant | |
| EAR99 | |
| Active | |
| EA | |
| Automotive | No |
| PPAP | No |
| Circular | |
| PL | |
| Through Hole | |
| Right Angle | |
| N | |
| 1 | |
| 2 | |
| 2 | |
| PIN | |
| Solder | |
| No | |
| Copper Alloy | |
| Gold Over Nickel | |
| Thermoplastic | |
| 5 | |
| -40 | |
| 65 | |
| IP68 | |
| 100 | |
| 50 | |
| 600 | |
| 20.3 | |
| 25.83 |
Make a solid connection with this EN3P2MRAPCBN connector from Switchcraft. It has a plug type gender. It has a right angle body orientation. This male connector's 2 contacts that are made out of copper alloy and plated with gold over nickel. This device has a maximum current rating of 5 A. This product is 20.3 mm long and 25.83 mm. It uses the solder termination method. This circular connector has an operating temperature of -40 to 65 °C.
