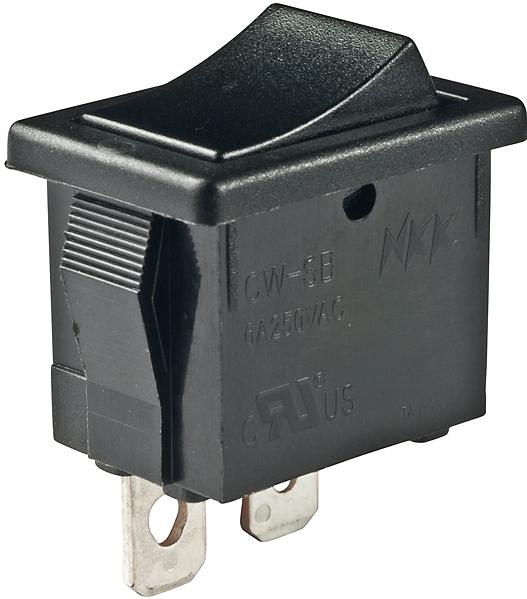

NKK SwitchesCWSB11AAFSwitch Rocker
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| SPST | |
| ON None OFF | |
| Curved Rocker | |
| 6@250VAC | |
| 1500VAC | |
| 500 | |
| 20 | |
| 10000 | |
| 30000 | |
| Black | |
| 15.8 | |
| Panel Mount | |
| Quick Connect | |
| 2 | |
| 8.1 | |
| Thermoset | |
| Black | |
| Polyamide | |
| Black | |
| Black | |
| Straight | |
| -10 | |
| 70 | |
| 21.1 | |
| 15.1 | |
| 16.2 | |
| 21.1 | |
| 15.1 | |
| 28 | |
| 10.6 | |
| 3.7 |
Do you need a safe way to turn off and on your device? Use this CWSB11AAF rocker switch from NKK Switches for a sleek look. This device has a maximum current rating of 6 A @ 250VAC. It has a SPST configuration. This rocker switch panel has an operating temperature range of -10 °C to 70 °C. The CWSB11AAF rocker switch panel has a quick connect termination style. The maximum AC voltage rating is 250 VAC. This product is 21.1 mm long, 28 mm tall and 15.1 mm deep.
