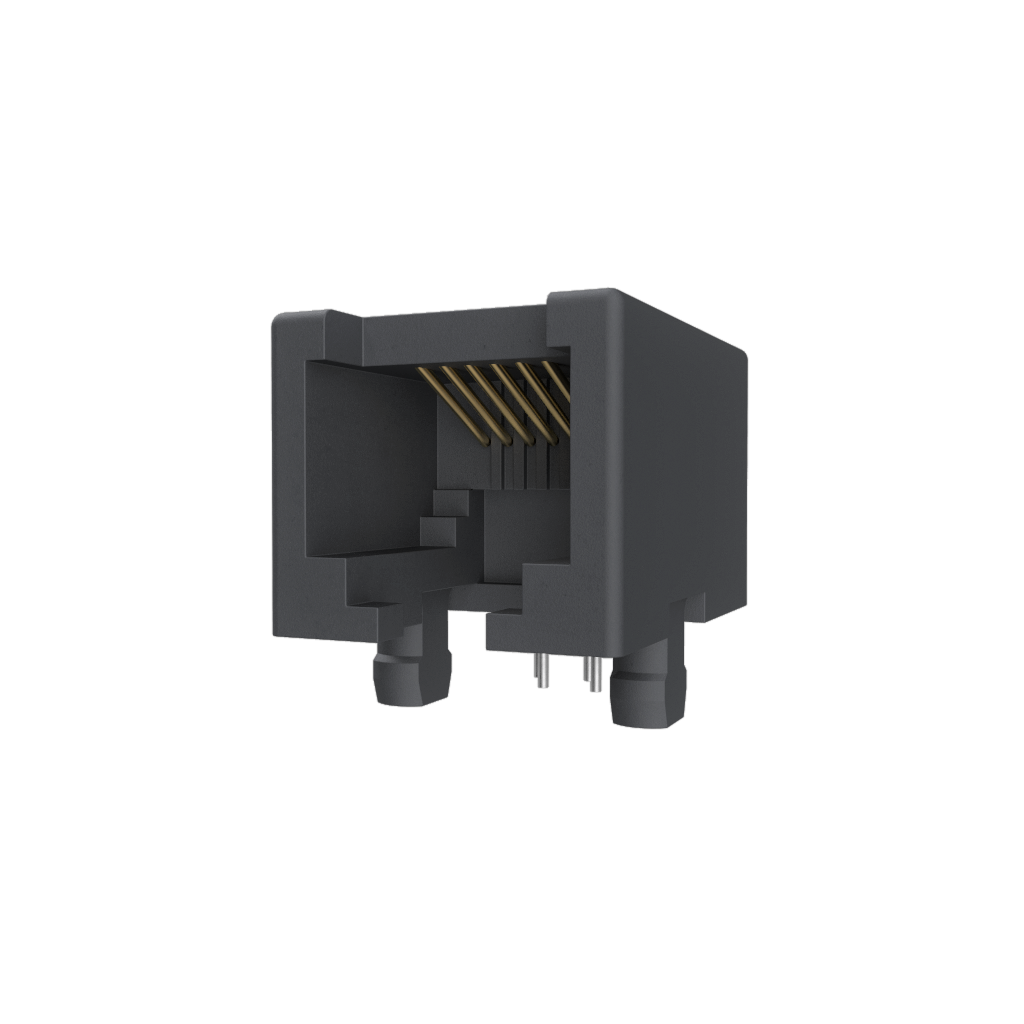

Amphenol Communications Solutions54601-906WPLFConnector Telephone and Telecom
Modular Jack, Input Output Connectors, Cat 3 Single Modular Jack, Horizontal, Board Through Mount, 6P6C, 1 Port
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.69.80.00 | |
| Automotive | No |
| PPAP | No |
| Modular Jack | |
| RCP | |
| 6 | |
| 6 | |
| 1 | |
| 6 | |
| Cat 3 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 1/Contact | |
| 1000VDC|1000VAC | |
| 500 | |
| 22 | |
| 250 | |
| No | |
| Tray | |
| Single | |
| 13.2 | |
| 18 | |
| 11.5 | |
| Through Hole |
Looking for a way to connect a phone to a device? This modular jack 54601-906WPLF telephone and telecom connector from FCI will get you there. This RCP connector's 6 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 1000 VDC|1000VAC. It has a receptacle type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. 54601-906WPLF is housed in black nylon. It uses the solder termination method. This product is 13.2 mm long, 11.5 mm tall and 18 mm deep.
